This 65-inch 2024 Samsung Frame was mounted in Stockwell, SW8, using the original Samsung Slim Fit wall mount supplied with the television. The dot-and-dab wall had an approximate 2cm gap and insulation behind the plasterboard. The mount was suitable, but an uneven wall surface initially prevented the screen from sitting flush.
Stockwell, SW8, London Borough of Lambeth
65-inch standard Samsung Frame, 2024
Dot-and-dab plasterboard, approximate 2cm gap, insulation behind
Original Samsung Slim Fit wall mount, supplied with the television
Four GripIt plasterboard fixings
Box inside the cabinet, cable concealed between the TV and cabinet
TV Mount Mate
The main challenge on this installation was the uneven wall surface, which affected how closely and evenly the TV could sit against the wall. The mounting area was carefully assessed and prepared before installation so the bracket could be positioned securely and the finished TV could sit as neatly and evenly as the existing wall condition allowed.

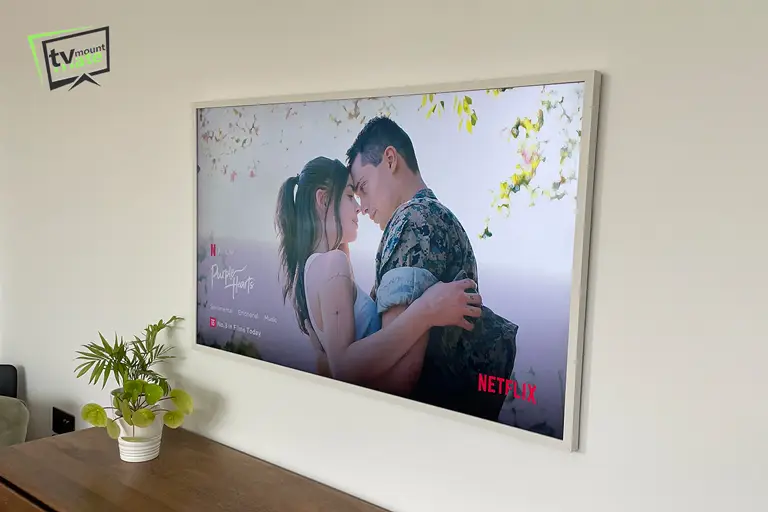

The Samsung Slim Fit mount is intended to hold the Frame close to the wall. In this room, the problem was not the supplied mount. An uneven area behind the television was holding part of the screen away from the finished surface.
Before fitting the television, we carefully sanded the affected area until the surface was even enough for the screen to sit correctly. The supplied mount was then secured with four GripIt plasterboard fixings. No packing or spacers were needed.
The One Connect box was housed inside the cabinet below the television. The One Connect cable was concealed between the screen and cabinet, while power was connected behind the cabinet at the bottom rather than through a socket behind the TV.

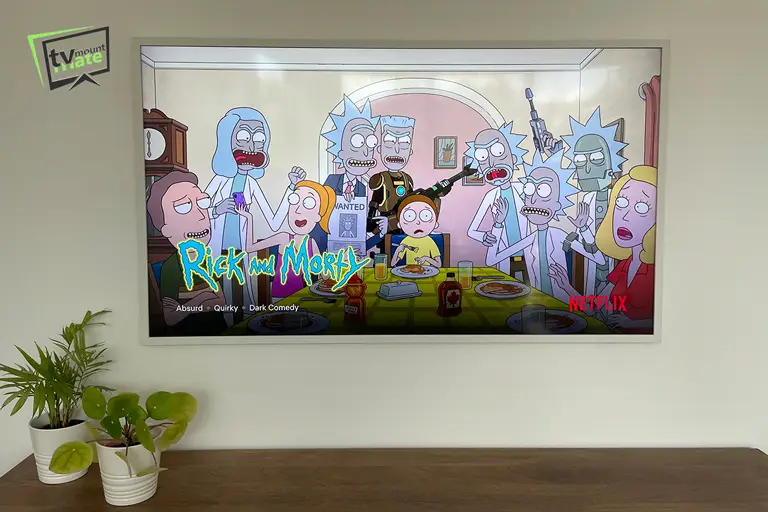

The final height and centre were chosen in relation to the cabinet and viewing position. Once the uneven area had been corrected, the Frame and light-coloured magnetic bezel sat flush above the cabinet, producing the intended gallery-style result.
Send your postcode, TV size, wall photographs and bracket details for a fixed quote before booking. No deposit is required, and payment is due on completion. Get in touch or call 07944 499585.
